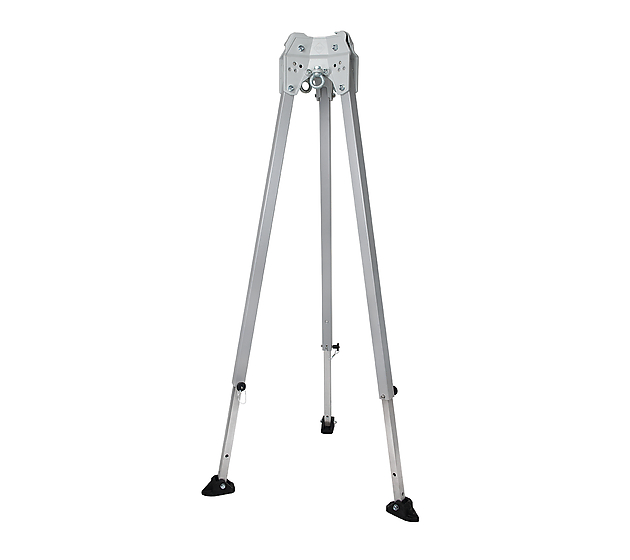

IKAR TRIPOD

Portable tripod with adjustable locking legs and 3 intergated pullies. Head construction allows a variety of leg angles and a safety-chain-free design. Ideal for economical compliance in many basic confined space, fall arrest applications and rescue.

• up to 2.54 m high aluminium tripod with corrosion-resistant coating featuring 3 bolts-in anchor points
• 1.56 m in collapsed setup for transportation, weight is 24 kg
• 2 stage independently adjustable telescopic legs with stainless steel pins and foldable rubber shoes with spiked edges – the individually adjustable legs are advantageous as they can be used on uneven ground

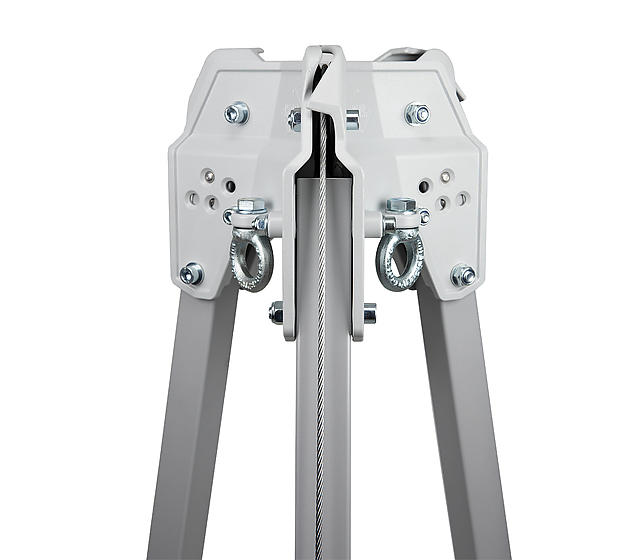

• 3 pulleys built into a die casted head
• tripod is designed to be used without support safety chain, which reduces a risk of tripping
• suitable for two persons with a load capacity of 300 kg

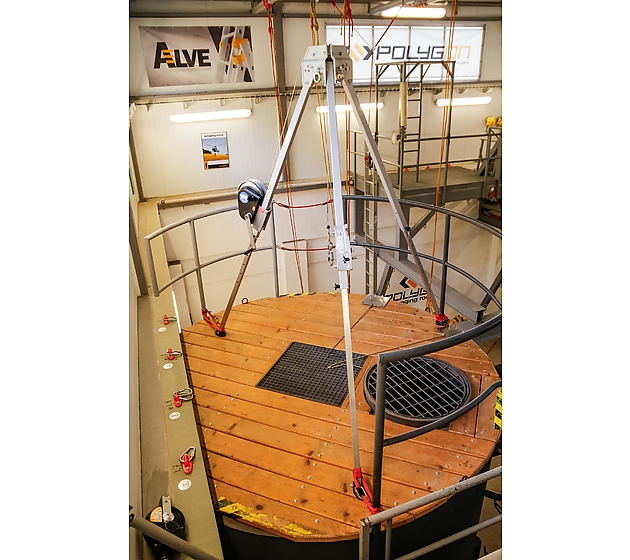

Note. Accessories depicted on the pictures 1, 2 and 3 (arrester/console) are not included.

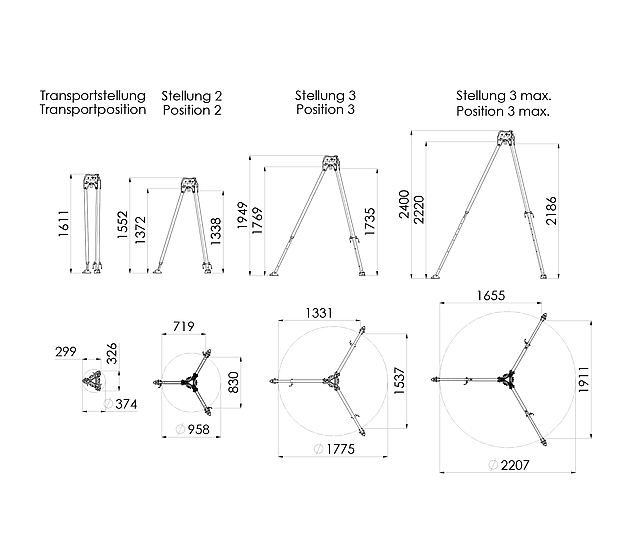

Height: min. 1.43 m, max. 2.54 m
Diameter: min. 0.64 m, max. 2.19 m
Weight: 24 kg

0299EN 795 Type BCEN/TS 16415

Accessoires:

IKAR WINCH TRIPOD CONSOLE / X4004XX00

• aluminium bracket to connect IKAR PLW and IKLW 300 winch to IKAR DB-A3 TRIPOD
• dimensions: 200 x 130 x 82.5 mm (length x width x height)
• weight: 2 kg

IKAR HRA TRIPOD CONSOLE / X4003XX00

• universal aluminium bracket to connect IKAR HRA recovery devices (up to 30 m) to IKAR DB-A3 TRIPOD
• dimensions: 255 x 165 x 78 mm (length x width x height)
• weight: 1.8 kg

TRIPOD BAG / A4070XX00

• durable bag with a reinforced bottom to transport and protect the tripod
• shoulder straps allow easy transport of the tripod to a workplace
• zippered top access into the bag
• durable material for higher mechanical resistance due to double-layer PVC sheath
• dimensions 160 x 30 cm / weight 2 kg / max. load 30 kg
