Description

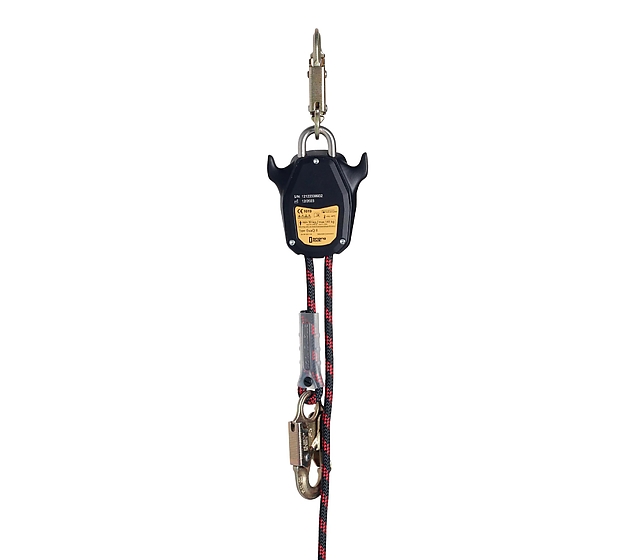

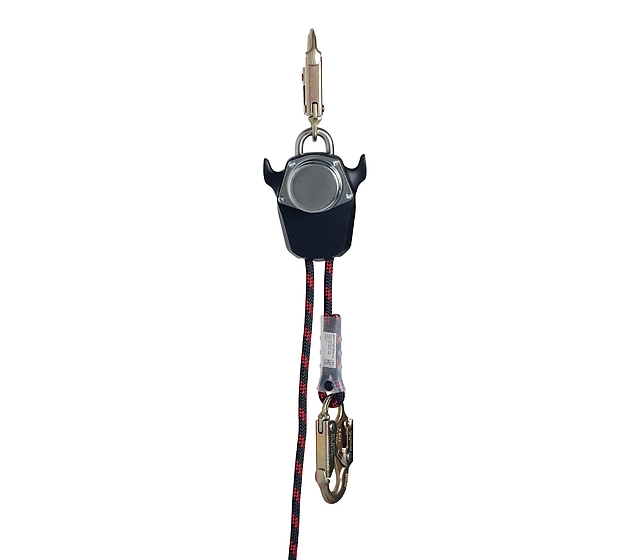

EVAQ II / W1523X000
A simple abseiling device designed for rescuing individuals from heights, especially well-suited for the efficient and safe rescue of multiple endangered persons.
- efficient rescue of several people using the shuttle system
- designed for a working load of 141 kg (1 person)
- automatic and redundant brake system
- brake drums are made of steel for high resistance
- attachment point is equipped with a steel double trigger automatic locking connector with a gate opening of 21 mm
- static polyamide kernmantle rope can be up to 250 m long
- both ends of the rope are equipped with a stitched eye and a steel double trigger automatic locking connector with a gate opening of 21 mm
- for a storage and transport we recommend a shock and waterproof plastic PROTECTIVE CASE in two sizes with a volume of 17 and 46 litres or a storage RESCUE BAG with a volume of 30 litres
- when the device is stored in a sealed protective case an annual inspection is easier without the necessity of dismantling this device. It may be carried out by a competent person.
| Weight | 1.1 kg (39 oz) + rope |
|---|---|
| Working load | 30 – 141 kg (66 – 311 lb) designed for 1 person |
| Length | descent height max. 250 m (820 ft) |
| Descending speed | <2m/sec |
| Temperature range | -40 °C to +65 °C |
1019EN 341:2011-1BANSI Z359.4:2013
