Description

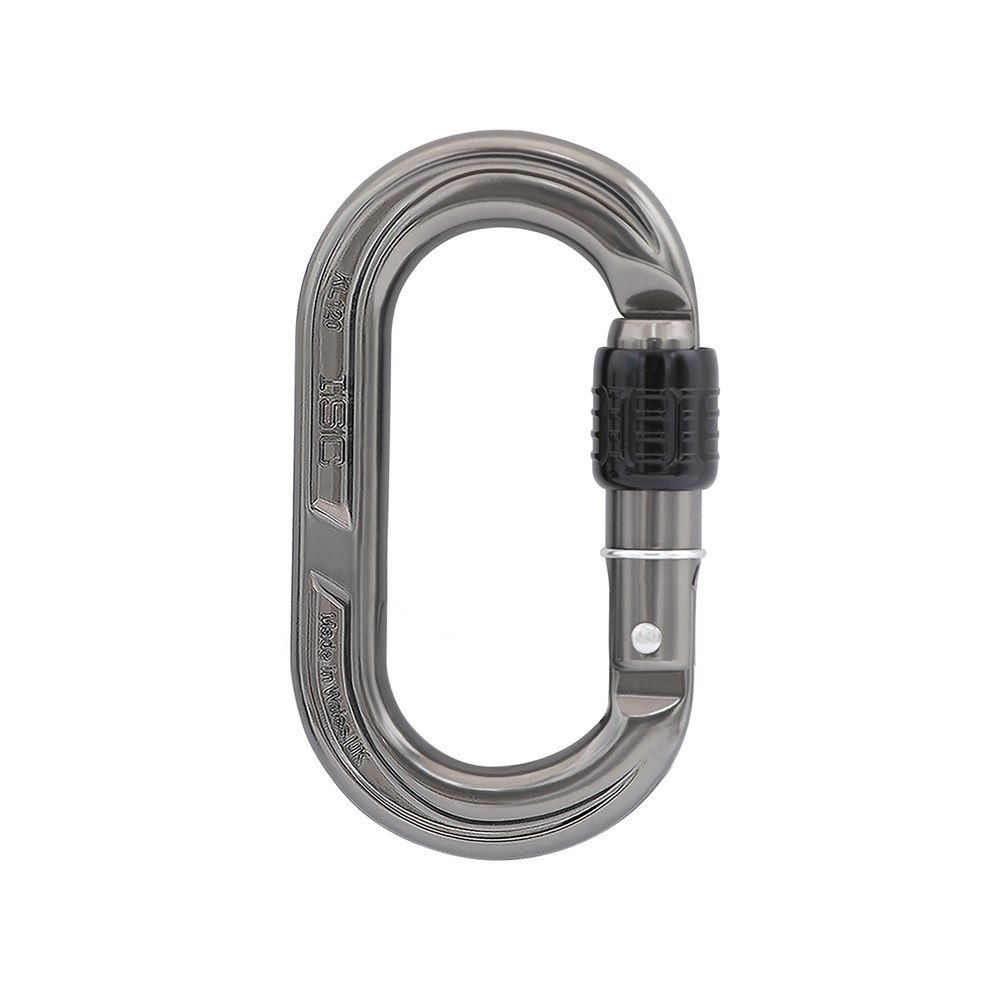

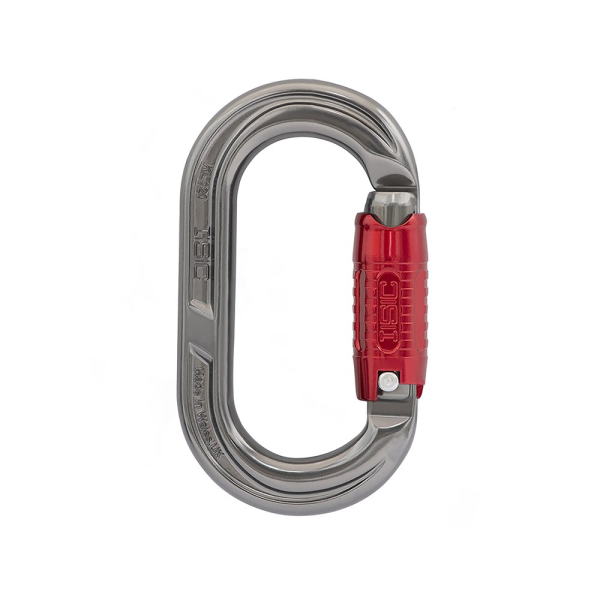

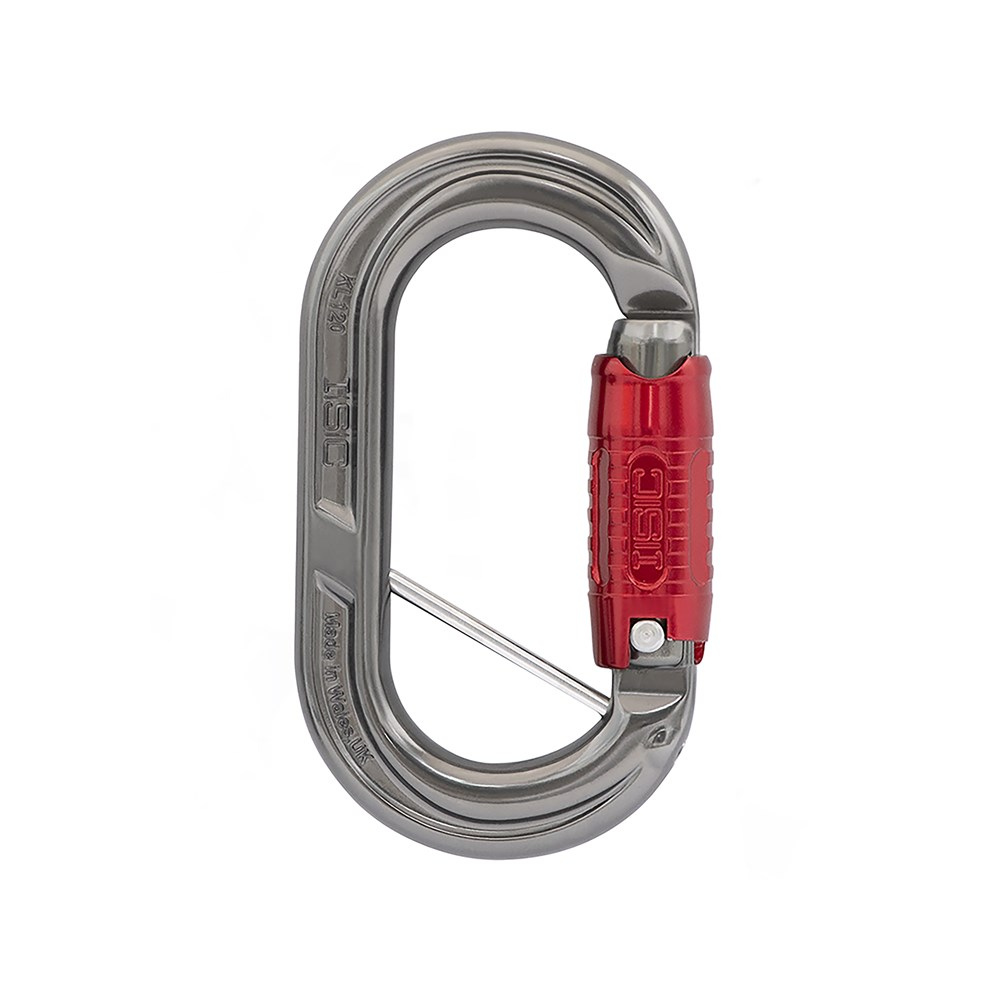

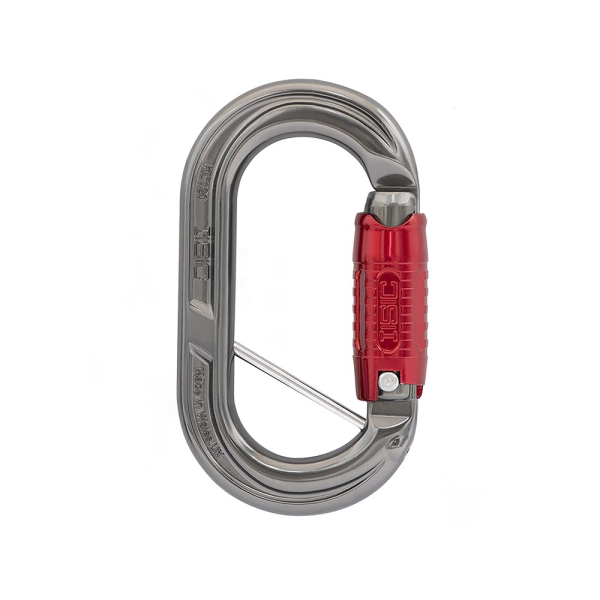

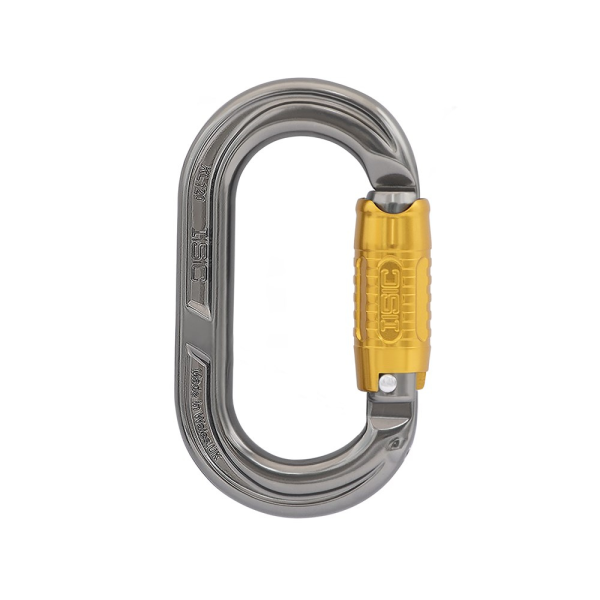

The KL120 Compact Oval is a palm-size compact oval karabiner with an effective working length of only 70mm (2 3/4″), making it the ideal option for applications where a short/compact system is advantageous.
Many industrial Oval Karabiners have an offset shape, in order to bias (offset) the load towards the spine (the strongest part of the karabiner), to achieve additional major axis strength. The KL120 however is a ‘true’ (symmetrical) oval, which is ideal when load centralisation, correct orientation and optimal loading are the top priorities, to enable balance in a system.
The KL120 has a strong I-beam spine which blends in to softly rounded, rope-friendly baskets. The gates are fitted with sleek, streamlined barrels which are designed to reduce play in the barrel and optimise gate opening ergonomics. New CNC-machined grip detail replaces the knurled grip. The grip are has also been extended to improve user grip throughout the opening sequence of the gate.
Technical Information
(MBS) Minimum Breaking Strength (kN)24
(MBS) Minimum Breaking Strength (lbf)5395
(MBS) Minimum Breaking Strength – gate open (kN)7
(MBS) Minimum Breaking Strength – gate open (lbf)1573
(MBS) Minimum Breaking Strength – cross loaded (kN)9
(MBS) Minimum Breaking Strength – cross loaded (lbf)2023
Nose typeKeylock nose
Captive pinAvailable on request
Serial numberingAs standard
FinishAnodised
Weight (grams)63
Weight (ounces)2.2
Approved Standards
EN362:2004 B & T
EN12275:2013 B, X & T
