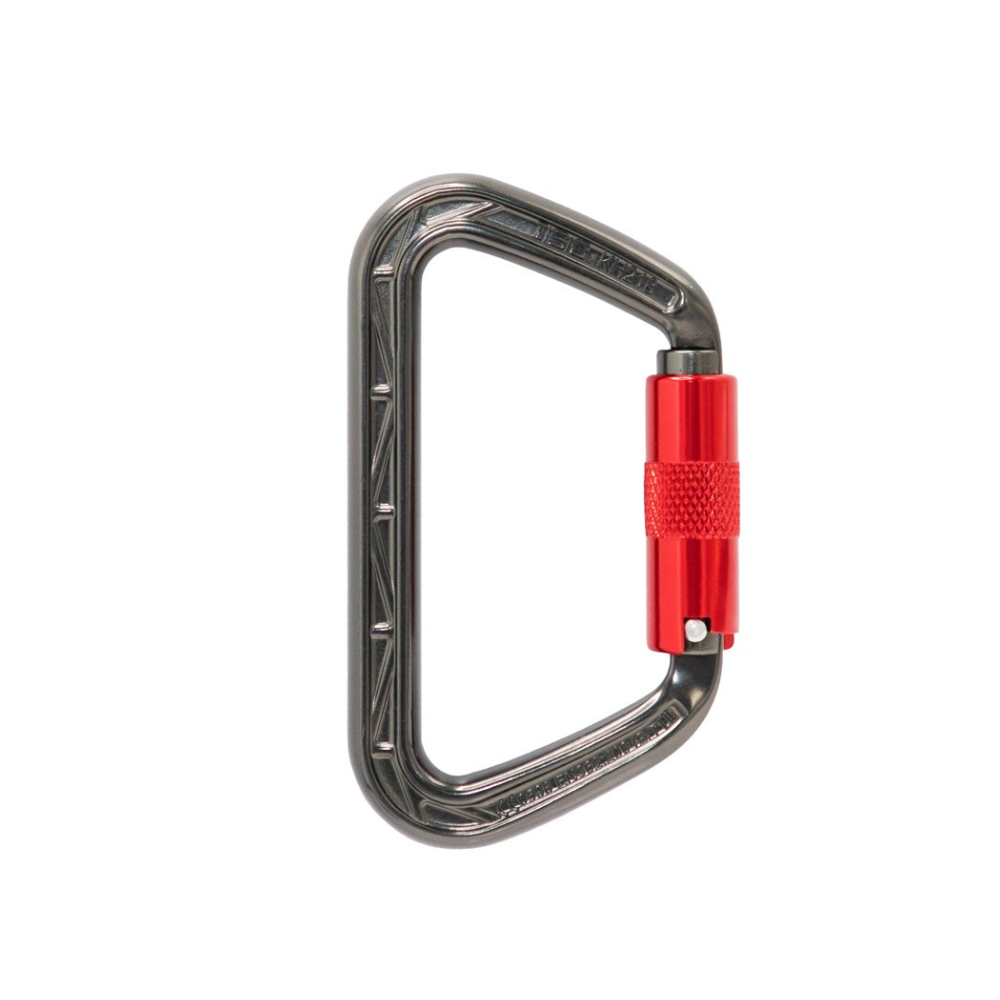

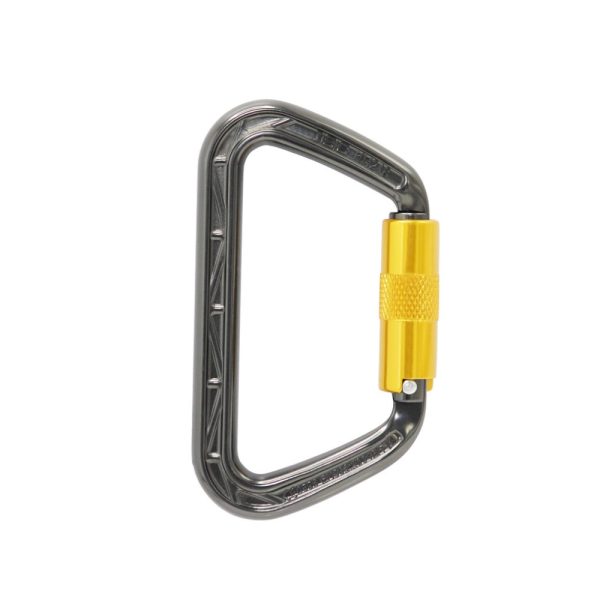

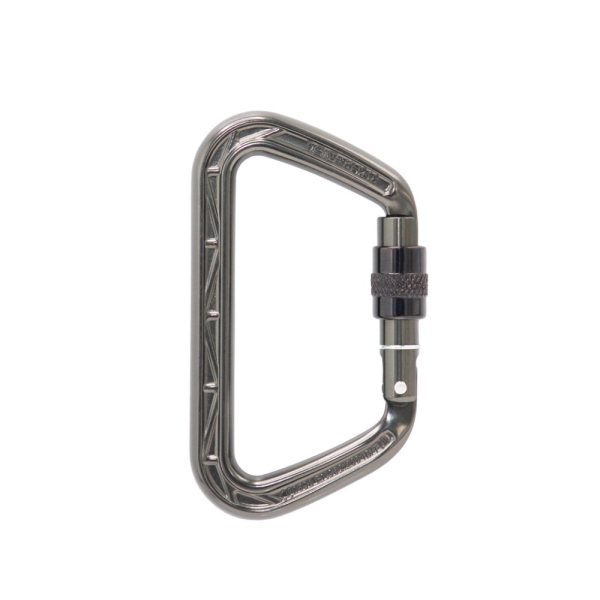

Aluminium Wizard Karabiner

Description

The “Wizard” range represents the strongest karabiners we manufacture in both Steel & Aluminium, with minimum breaking strengths (MBS) ranging from 45kN to 70kN. The Aluminium Wizard is a high strength, light-weight Karabiner. Its shape is designed to bias the load towards the spine– the strongest part of the Karabiner.

Gate types:

SG Screwgate
TL Twistlock (2-way)
SS Supersafe (3-way)
TL Twistlock ANSI
SS Supersafe ANSI

(please see datasheet for part code information)

Technical Information

(MBS) Minimum Breaking Strength (kN)45
(MBS) Minimum Breaking Strength (lbf)10116
Gate opening gap (mm)26 (Standard Screwgate model)
Gate opening gap (inches)1
Nose typeBlind nose
Captive pinAvailable on request
ANSI compliant versionAvailale on request
Serial numberingAs standard
FinishAnodised
Weight (grams)115 (Standard Screwgate Model)
Weight (ounces)4
Height (mm)128
Height (inches)5
Width (mm)74
Width (inches)2 7/8
Thickness (mm)18
Thickness (inches)3/4

Approved Standards

CE EN 362:2004B/T
Meets: NFPA 2500 (1983) (22ED)G
ANSI Z359.12 2019 version also available

Notes

Captive pin available on standard (non-ANSI) models. Pin supplied loose, for retro-fitting.
