Description
IDEAL FOR PROFESSIONAL APPLICATIONS.
The Klettersteig shape takes the strength and volume increases of an Offset D and then extends them even further to give a high volume, super-strong connector. The Klettersteig’s wide gate opening makes it particularly suitable for clipping oversize items, or simply allows ease of use in more normal situations.
TECH SPECS
| Product Name | Product Code | Dimensions | Weight | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Gate Opening | Certification |
|---|---|---|---|---|---|---|---|---|

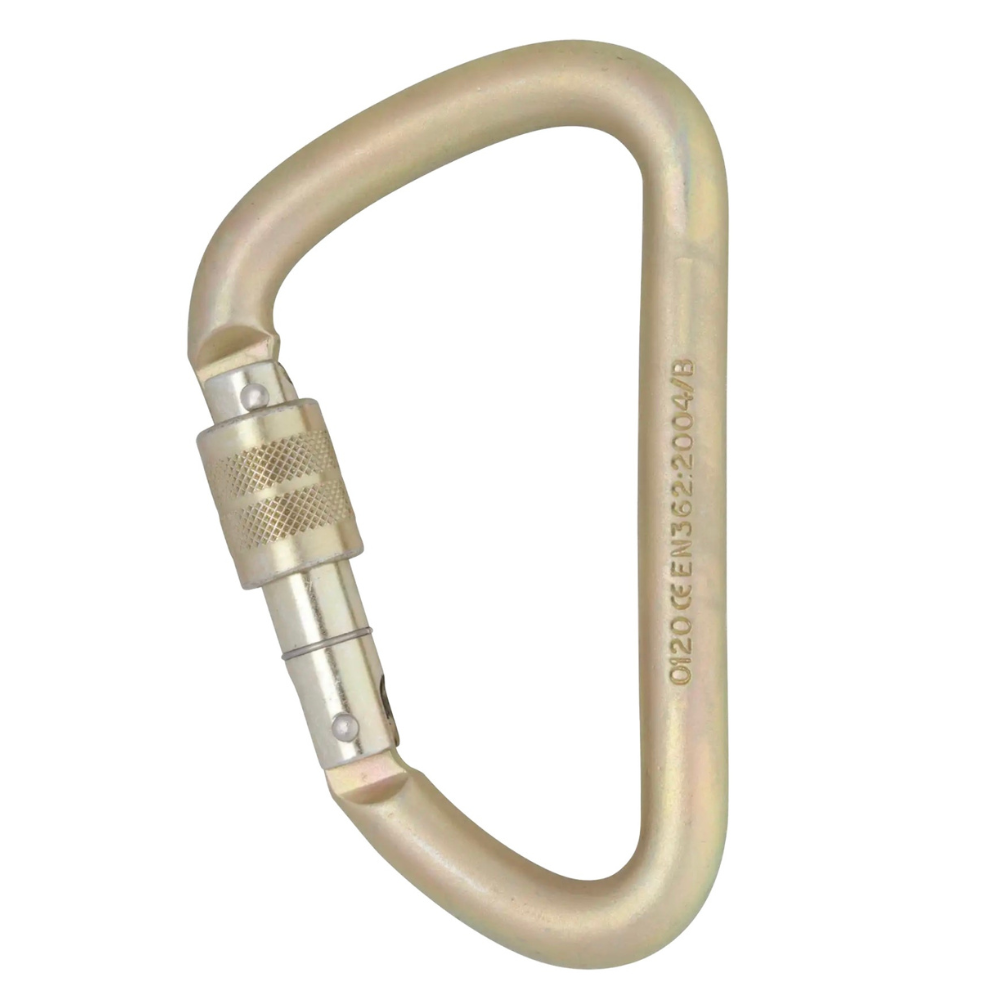

| 12mm Steel Klettersteig Screwgate | C842 | 76 x 126mm | 266g | 45kN | 12kN | 12kN | 24mm | EN362:2004 B EN12275:2013 B |

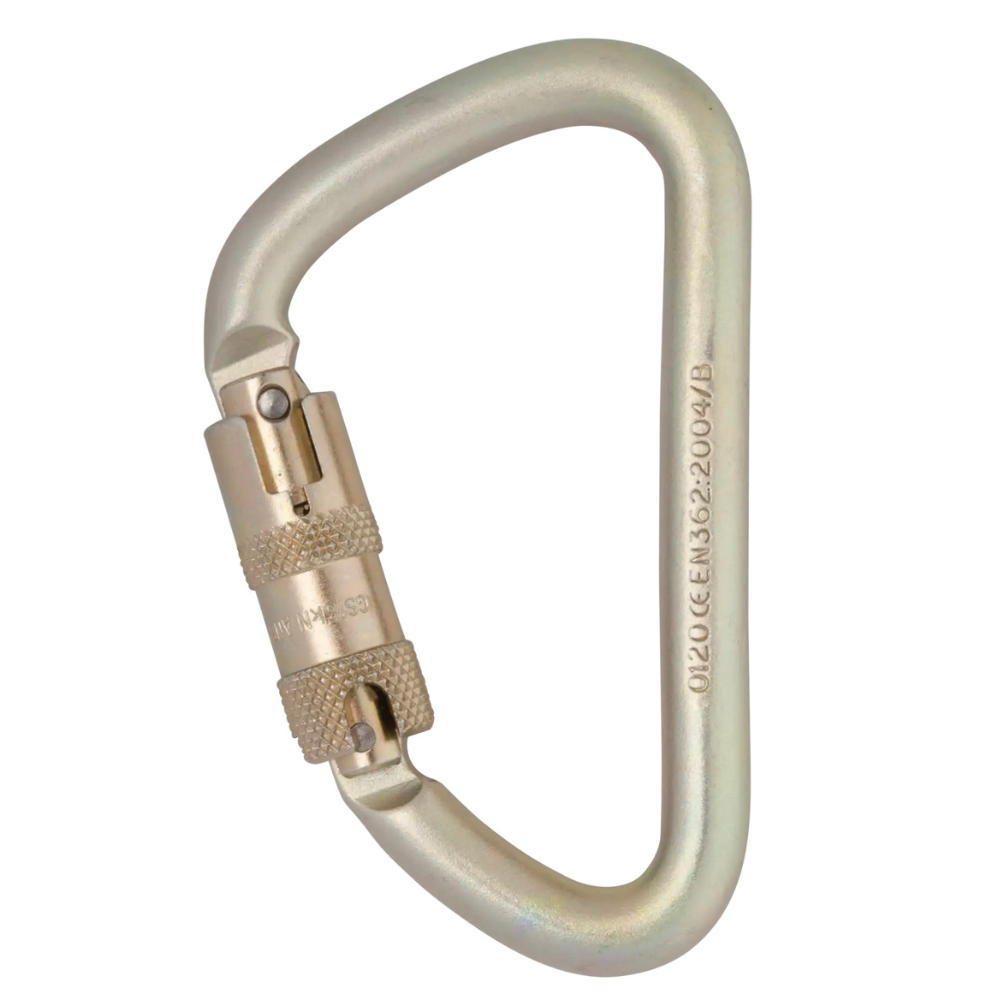

| 12mm Steel Klettersteig Kwiklock | C843 | 76 x 126mm | 278g | 45kN | 12kN | 12kN | 24mm | EN362:2004 B/K EN12275:2013 B/K |
| 12mm Steel Klettersteig Kwiklock ANSI | C843ANSI | 76 x 126mm | 293g | 45kN | 16kN | 12kN | 23mm | EN362:2004 B/K EN12275:2013 B/K ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 |

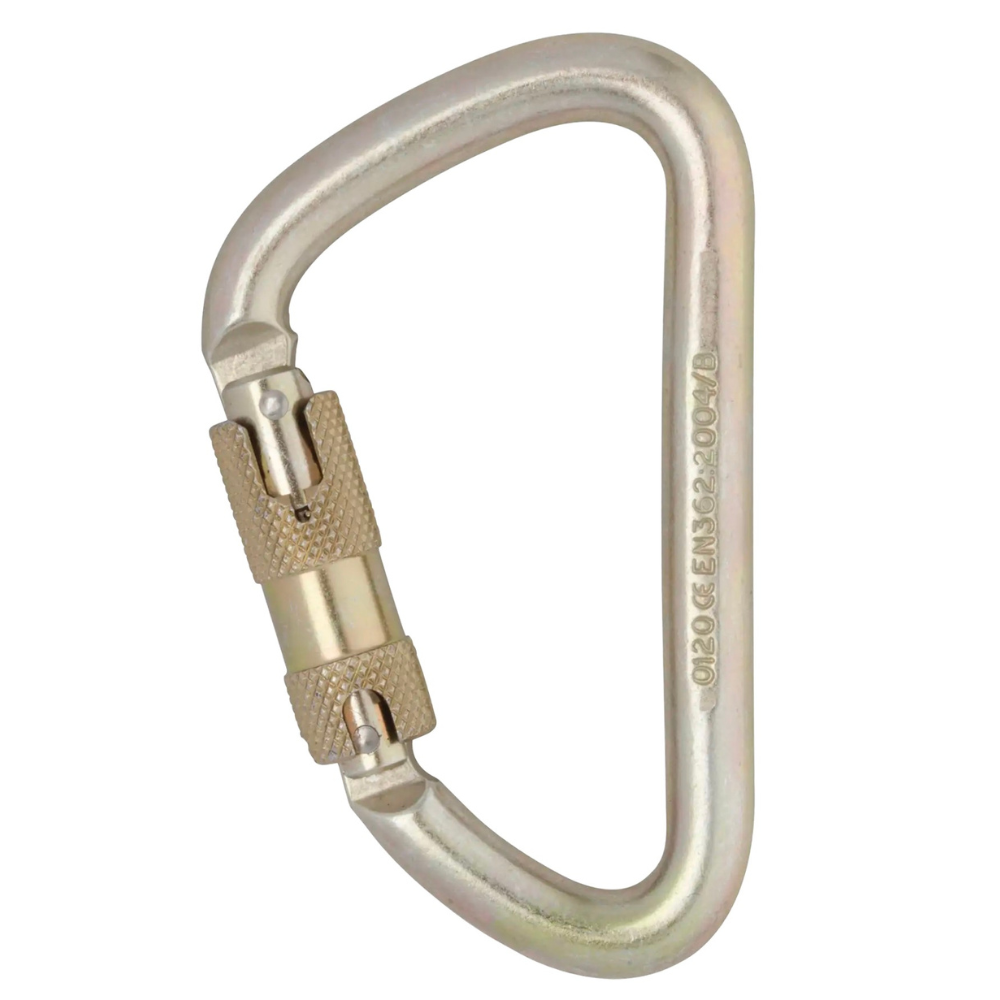

| 12mm Steel Klettersteig Locksafe | C847 | 76 x 126mm | 283g | 45kN | 12kN | 12kN | 24mm | EN362:2004 B/K EN12275:2013 B/K |
| 12mm Steel Klettersteig Locksafe ANSI | C847ANSI | 76 x 126mm | 295g | 45kN | 16kN | 12kN | 21mm | EN362:2004 B/K EN12275:2013 B/K ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 |
| 12mm Steel Klettersteig Locksafe Captive Bar | C847CB | 76 x 126mm | 283g | 45kN | 12kN | 12kN | 24mm | EN362:2044 B/K/T EN12275:2013 B/T/K |
| 12mm Steel Klettersteig Locksafe ANSI Captive Bar | C847CBANSI | 76 x 126mm | 295g | 45kN | 16kN | 12kN | 21mm | EN362:2044 B/K/T EN12275:2013 B/T/K ANSI/ASSE Z359.12-2019 CAN/CSA Z259.12-16 |
